Ever found yourself jamming to your favorite tunes on your Bose SoundLink Mini, only to have it die on you? Worry not, my friend! I’ve got some insider info on breathing new life into your beloved speaker.
Yes, the battery in a Bose SoundLink Mini I, II, and III can be replaced. It requires purchasing a compatible replacement battery and using basic tools to open the speaker’s case for battery replacement. The process is straightforward and can be done at home.
Curious about how to swap out that battery and get your SoundLink Mini booming again? Stick around, and I’ll walk you through every step of the process.
Which Battery Is Suitable for SoundLink Mini I, II, and III?
For SoundLink Mini I:

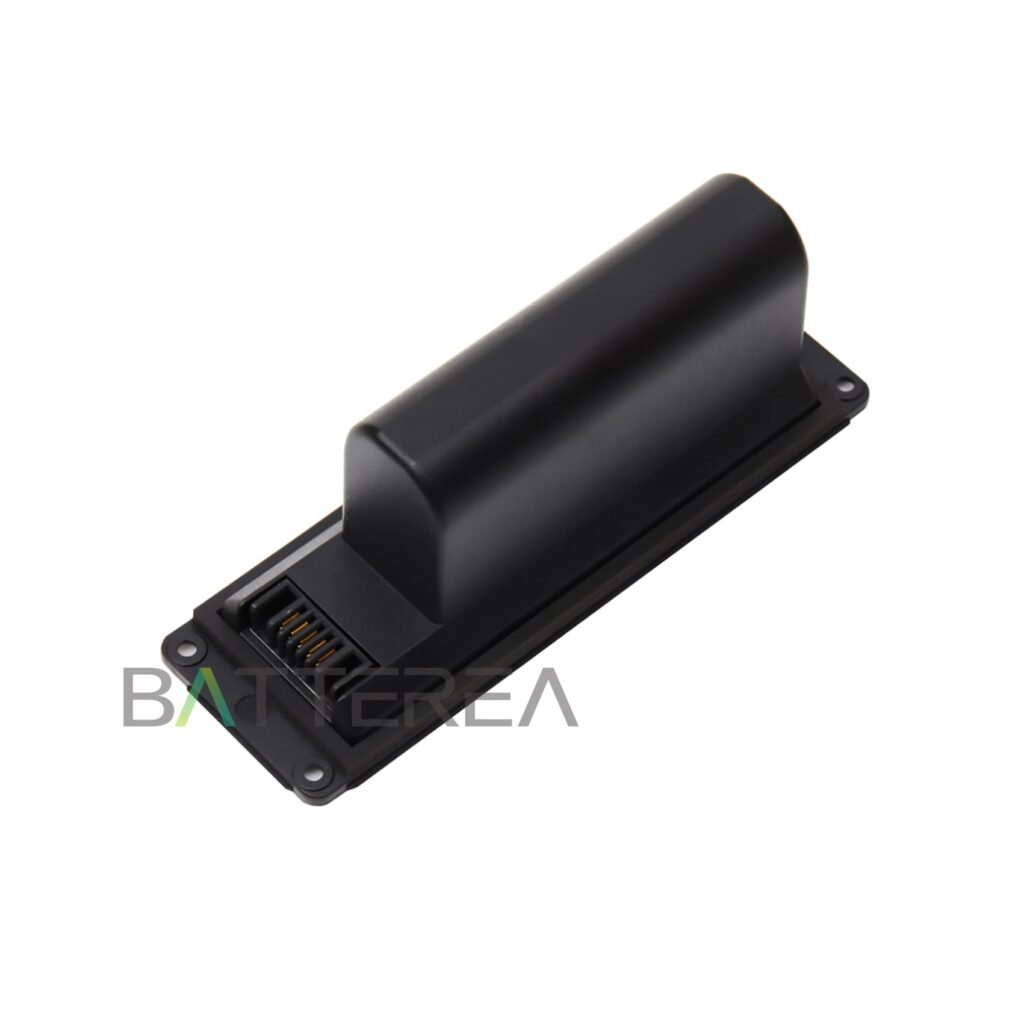

- Replacement Battery: Compatible specifically with SoundLink Mini I (first generation). Fits part numbers 061384, 061385, 061386, 063287, and 063404. The battery is a Li-ion type with a voltage of 7.4V and a capacity of 2900mAh.
For SoundLink Mini II:

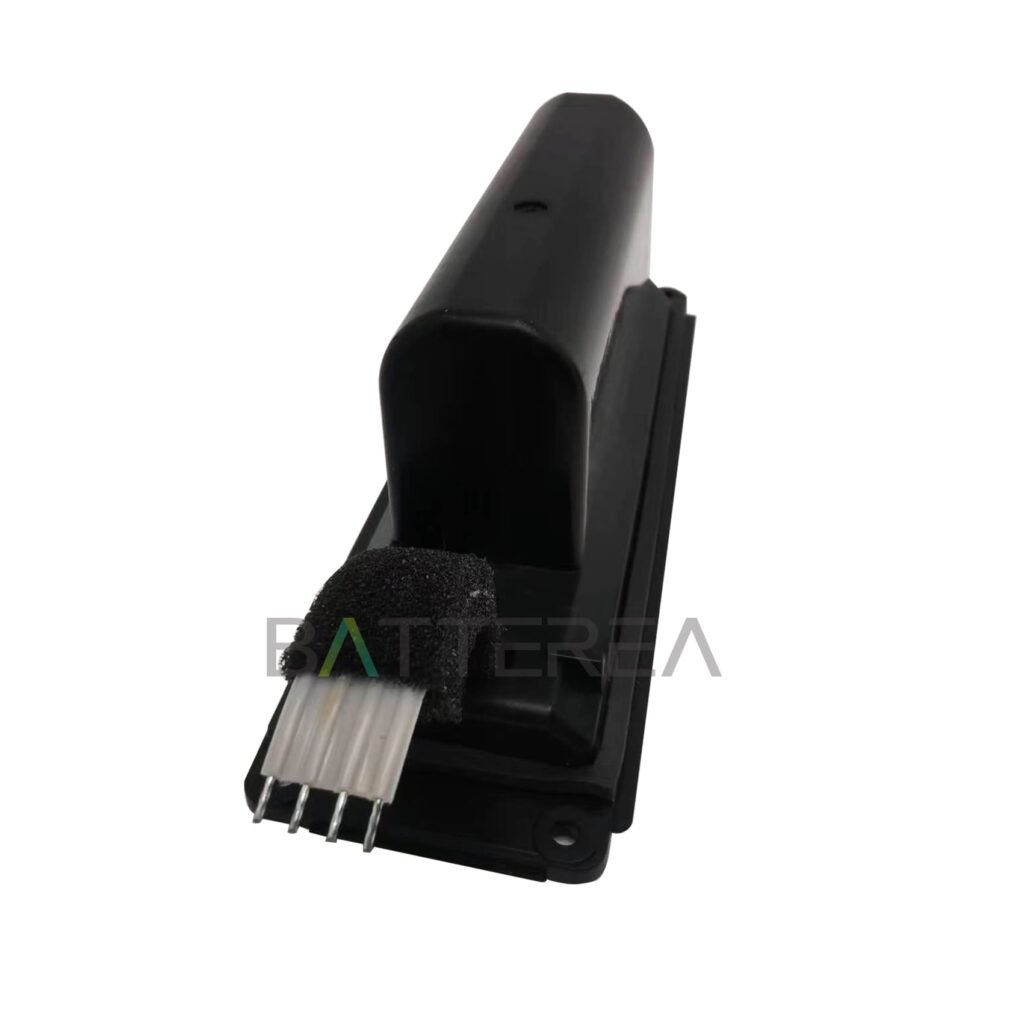

- Replacement Battery (1): Replaces part number 088789. This is a Li-ion battery, 7.4V, 3400mAh.
- Replacement Battery (2): Also for the SoundLink Mini 2, replacing 088789 but specified as “without PCM”. It has the same voltage (7.4V) and capacity (3400mAh).
For SoundLink Mini III:

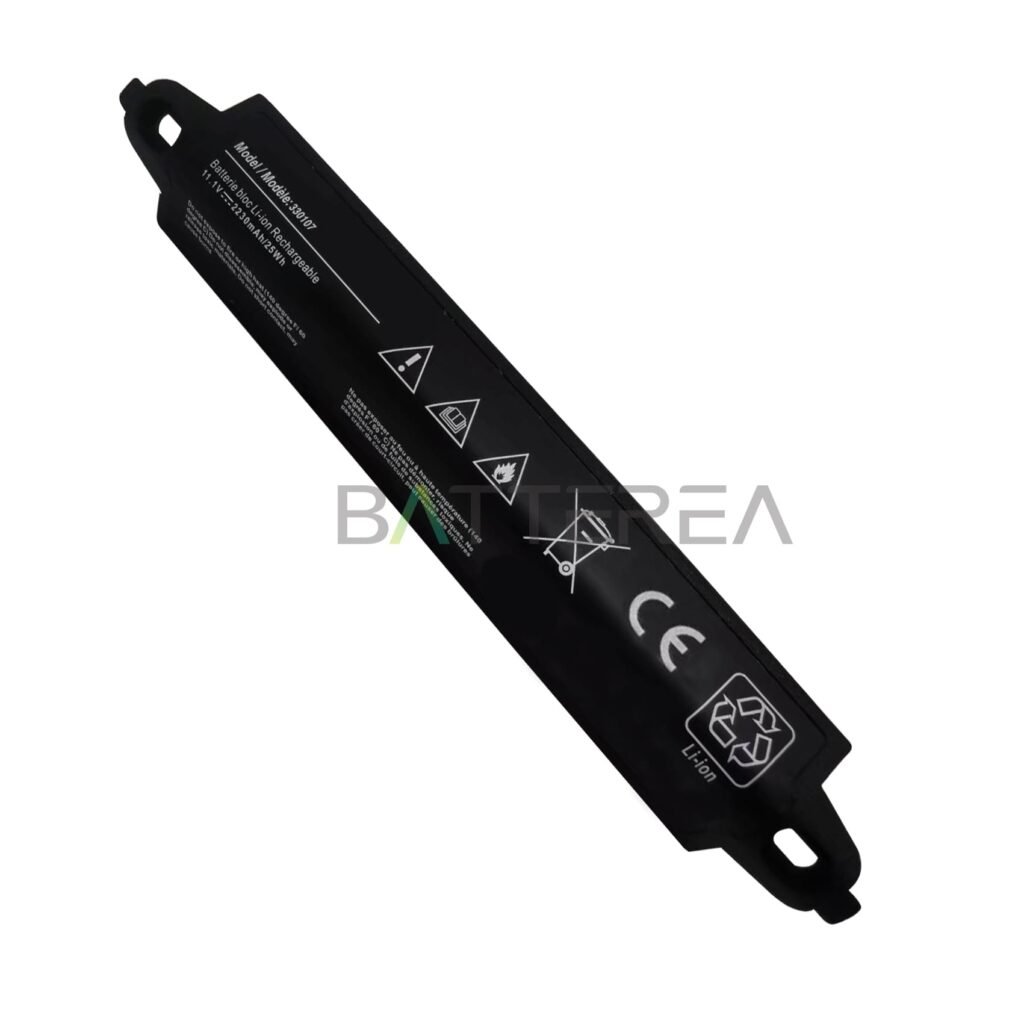

- Replacement Battery: Suitable for SoundLink II, III series, compatible with part numbers 330105, 359495, 359498, 330107, 404600. This battery has a voltage of 11.1V and a capacity of 2230mAh.
How to Replace Battery in a Bose SoundLink Mini Battery?
If you don’t have time to watch the video, don’t worry, I’ve prepared a detailed overview of the operation steps for you.
Tools and Materials Needed:
- Correct replacement battery
- T8 Torx bit (may come with the replacement battery kit)
Procedure:
- Check Model Number:
- Turn the Bose SoundLink Mini upside down.
- Locate the small gray cover on the back of the speaker.
- Peel up the gray cover in the corner where you see gray dots.
- Find the model number on the exposed area. Note down your model number for ordering the correct replacement battery.
- Order Replacement Battery:
- Order a replacement battery that matches your model number. It’s recommended to order a kit that includes a T8 Torx bit for the installation.
- Prepare for Installation:
- Once you receive the replacement battery and the T8 Torx bit (if included), you’re ready to proceed.
- Remove Rubber Mat:
- Turn the speaker upside down again.
- Starting at the corner with the gray dots, peel back the rubber mat to expose the original battery.
- Remove Screws:
- You’ll find four screws securing the battery in place.
- Use the T8 Torx bit to carefully remove all four screws.
- Replace Battery:
- Lift the original battery out of its position.
- Insert the new battery in the same direction as the old one.
- Secure the new battery by reattaching all four screws. Ensure they are tightened snugly.
- Reattach Rubber Mat:
- After securing the new battery, push down on the rubber cover to ensure it’s seated properly.
- It may require some pressure and wiggling, but make sure it’s completely flat and secure.
- Charging the New Battery:
- Before using the speaker, it’s recommended to charge the new battery to 100% for the first time.
- Place the speaker back on its charging base or charge it through the charging jack.
- Final Steps:
- Once the battery is charged to 100%, your Bose SoundLink Mini is ready to use with its new battery.
- Maintenance:
- Follow any additional maintenance or usage instructions provided with the replacement battery, if any.
